CONNECTOR OPTIONS
J1772 & NACS

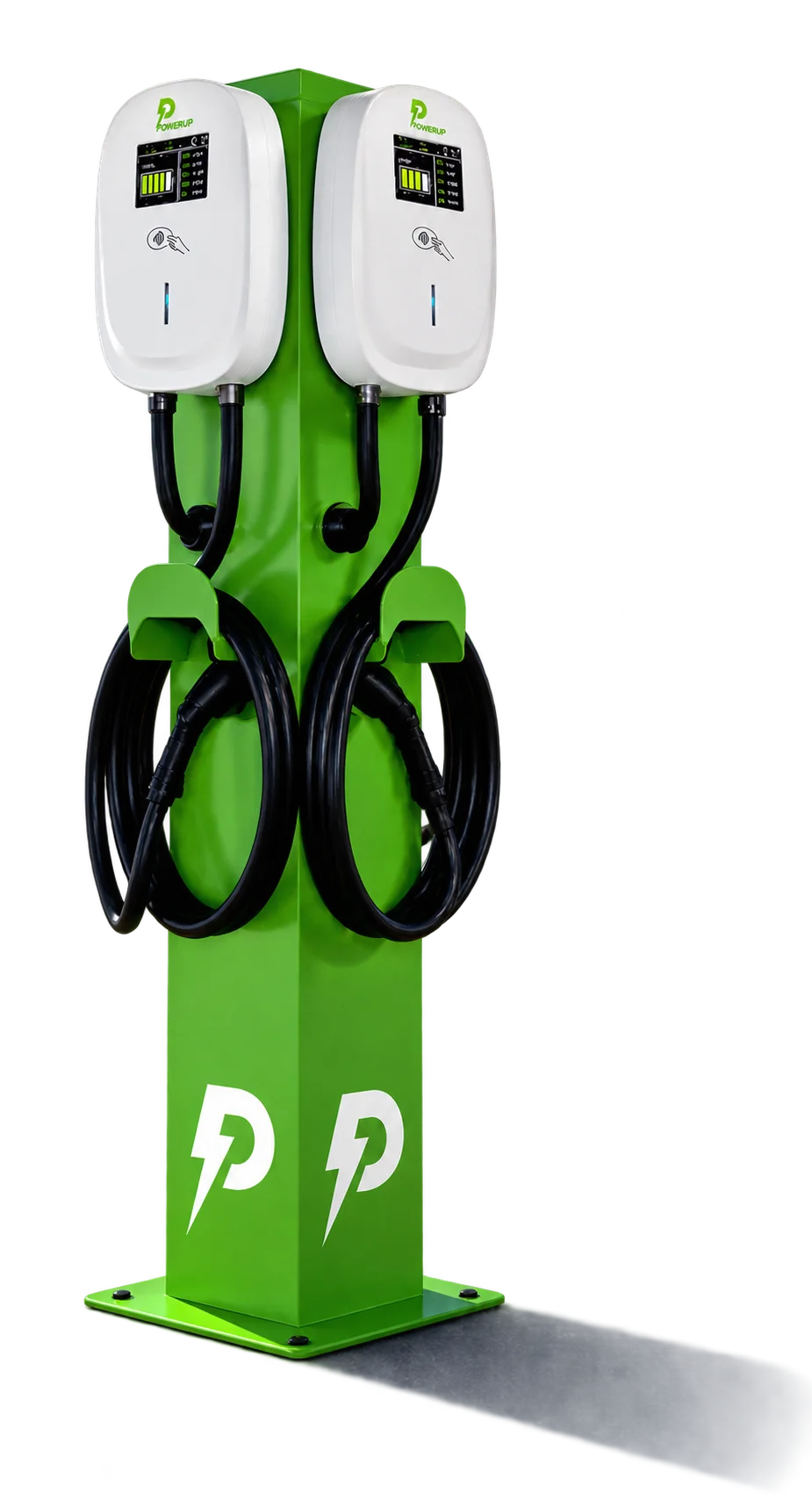

DUAL-PORT LEVEL 2 CHARGING STATION
Commercial Level 2 EV Charging Stations
PowerPump Dual-Port Level 2 chargers deliver reliable, efficient, and intelligent charging for two vehicles at the same time.
DUAL PORTS
Charge two vehicles simultaneously
FLEXIBLE POWER
Multiple power options to meet your needs
SMART & CONNECTED
OCPP, RFID, App & payment integration
BUILT TO LAST
Rugged design for indoor & outdoor use
AVAILABLE IN 4 POWER OPTIONS
7.6kW
32 Amp
Per Port
9.6kW
40 Amp
Per Port
11.5kW
48 Amp
Per Port
19.2kW
80 Amp
Per Port
ISO 15118
CTEP
ENERGY EFFICIENT
Optimized performance for a sustainable future.
EASY TO INSTALL
Designed for quick and flexible installation.
BACKED BY SUPPORT
Expert support when you need it.
OVERVIEW

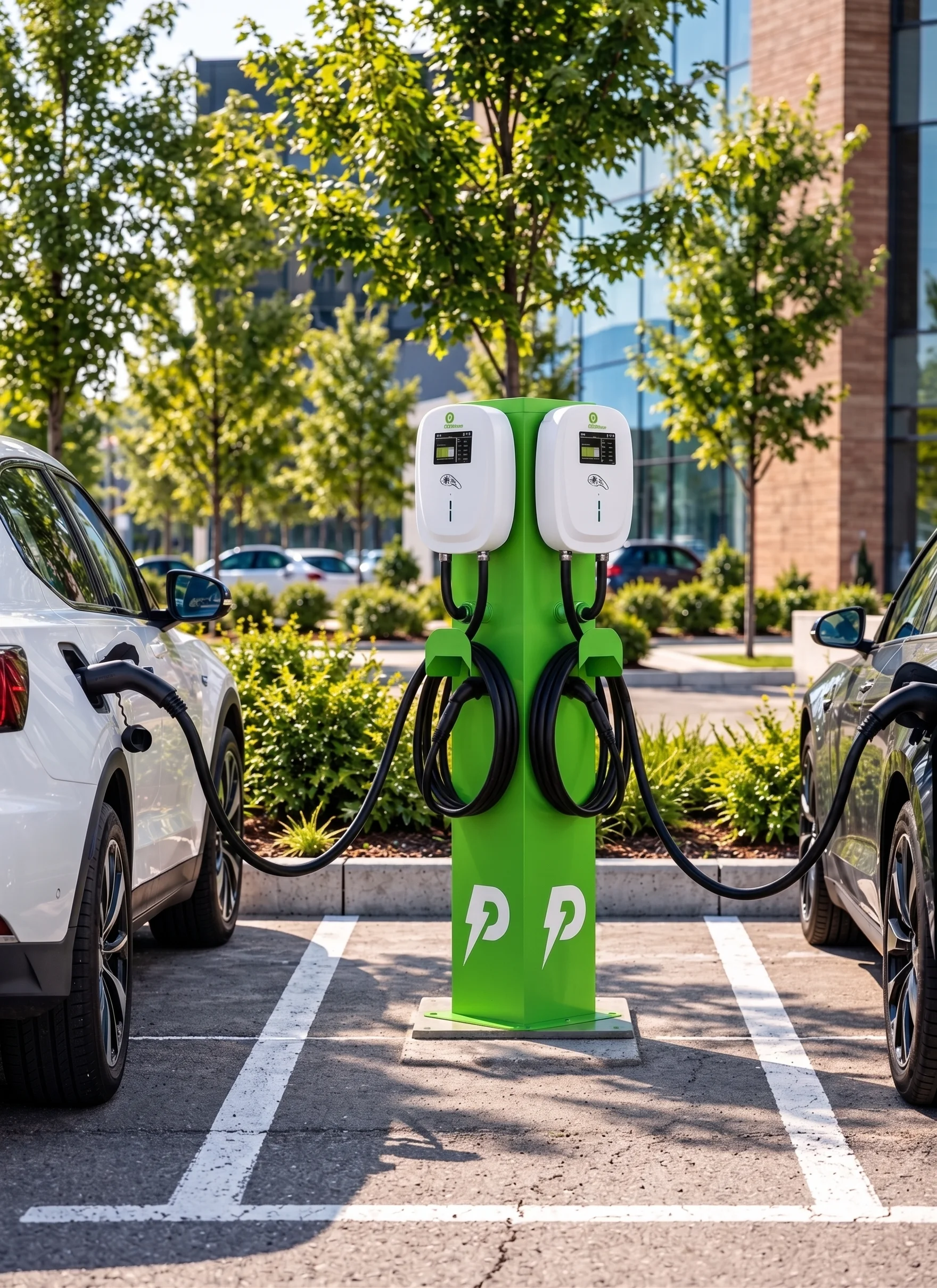

PowerPump Dual-Port Level 2 Charging stations are ideal for locations that need to charge two vehicles at the same time without compromising power or performance.
With four configurable power options, smart connectivity, and a rugged pedestal design, our dual-port solution is perfect for commercial, public, and residential applications.
SPECIFICATIONS
| Model Series | AC5500 Dual-Port |
|---|---|
| Charging Level | Level 2 |
| Power Options | 7.6 kW / 32 Amp | 9.6 kW / 40 Amp 11.5 kW / 48 Amp | 19.2 kW / 80 Amp |
| Output Voltage | 208/240V AC, Single Phase |
| Max Output Current | 32 Amp / 40 Amp / 48 Amp / 80 Amp |
| Connector Type | J1772 & NACS |
| Number of Ports | 2 |
| Cable Length | 25 ft (7.6 m) per port |
| User Interface | 4.3” Color LCD Display LED Status Indicator |
| Authentication | RFID, Mobile App, Plug & Charge |
| Connectivity | Wi-Fi, Ethernet, 4G |
| Communication | OCPP 2.0.1 |
| Operating Temperature | -22°F to 122°F (-30°C to 50°C) |
| Installation | Floor-Mount Pedestal |
| Safety & Compliance | UL2594, UL2231, UL2251, CSA C22.2 |
| Warranty | 2 Years Limited |
KEY FEATURES
- Charge two vehicles simultaneously
- Adjustable power output to meet your needs
- Smart charging with OCPP 2.0.1
- RFID, App and Plug & Charge support
- Rugged and weather-resistant design
- Integrated cable management
- Energy efficient and cost effective
- Remote monitoring and management
IDEAL FOR
- Workplaces
- Retail & Shopping Centers
- Multi-Family Residential
- Hotels & Hospitality
- Fleets & Municipalities
- Educational Institutions
- Public Parking Areas
Workplaces
Retail & Shopping Centers
Multi-Family Residential
Hotels & Hospitality
Fleets & Municipalities
Educational Institutions
Public Parking AreasSMARTER CHARGING.MAXIMUM PERFORMANCE.

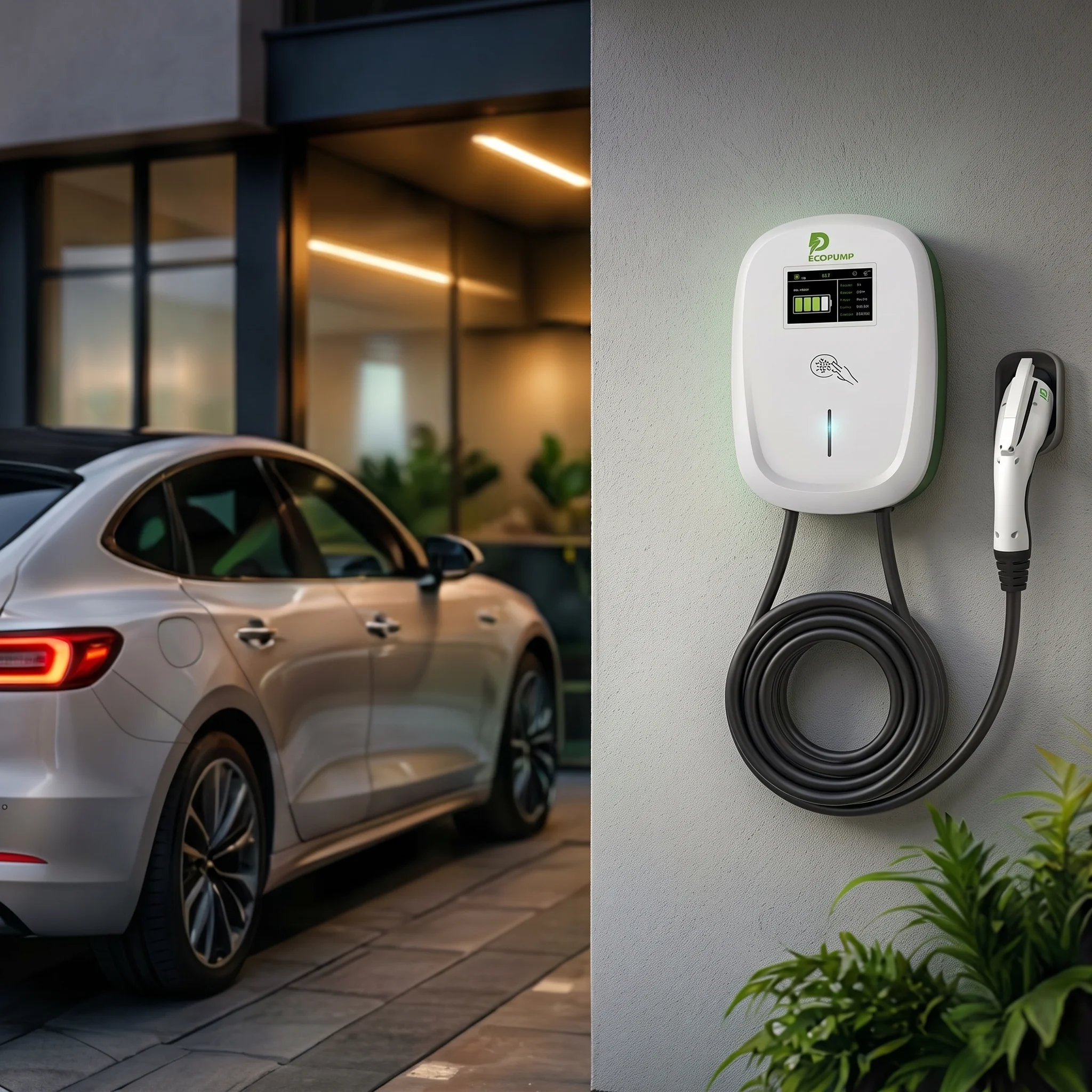

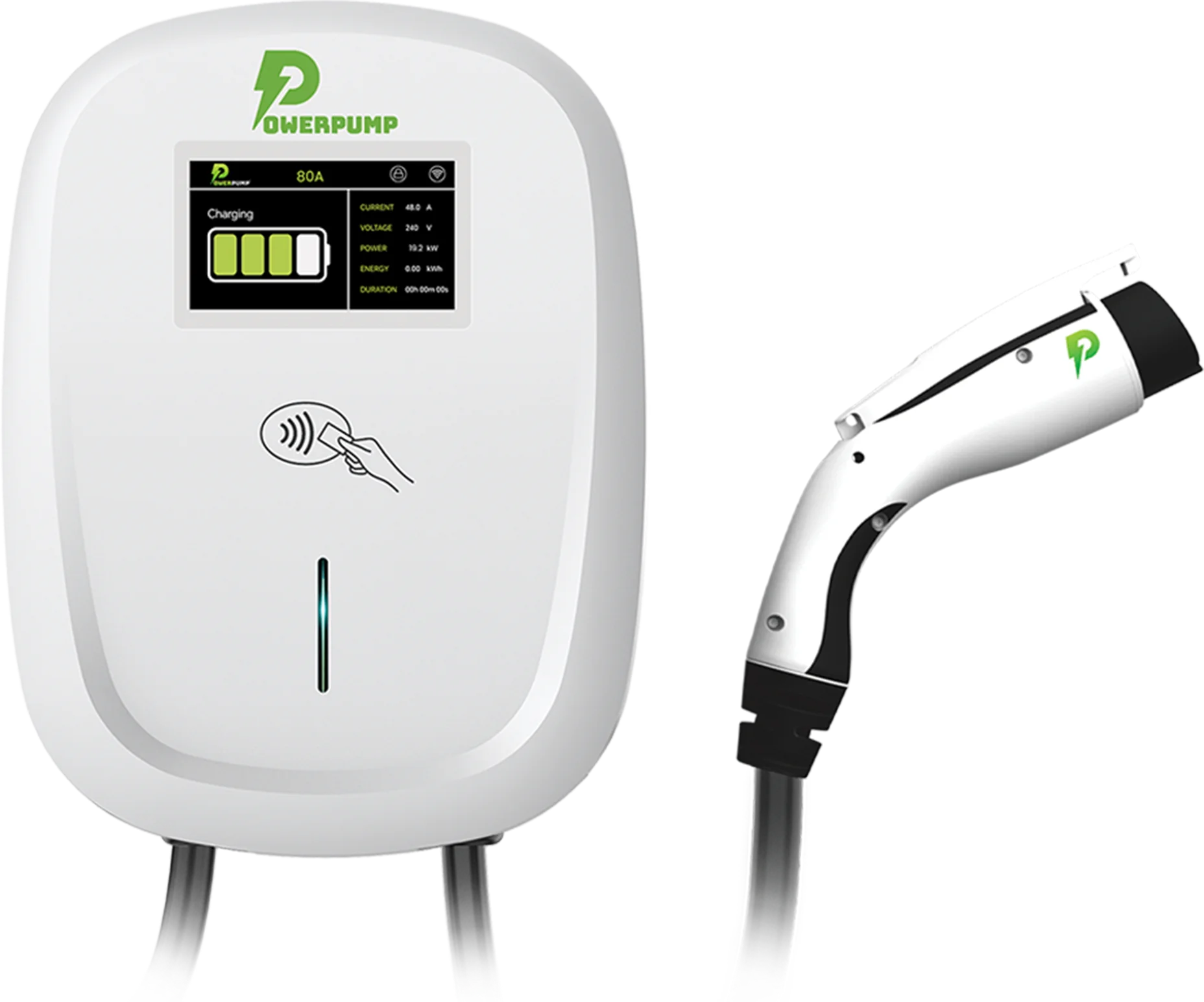

The PowerPump AC5500 Series Level 2 chargers deliver safe, reliable, and intelligent charging for every application. Built for performance and designed for the future.
POWERFUL
Up to 19.2 kW of charging power
SMART & CONNECTED
OCPP 2.0.1, RFID, App & payment integration
SAFE & CERTIFIED
Advanced protection with premium certifications
EFFICIENT
Energy efficient design for a sustainable future
AVAILABLE IN 4 POWER OPTIONS
7.6kW
32 Amp
9.6kW
40 Amp
11.5kW
48 Amp
19.2kW
80 Amp
ISO 15118
CTEP
CONNECTOR OPTIONS
J1772 & NACS
ENERGY EFFICIENT
Optimized performance for a sustainable future.
EASY TO INSTALL
Designed for quick and flexible installation.
BACKED BY SUPPORT
Expert support when you need it.
OVERVIEW
The AC5500 Series offers four configurable power options to meet the needs of any location, from homes, workplaces to fleets and public parking.
Engineered with advanced technology and built with premium components, the AC5500 Series ensures a superior charging experience every time.
SPECIFICATIONS
| Model Series | AC5500 Series |
|---|---|
| Charging Level | Level 2 |
| Power Options | 7.6 kW / 32 Amp | 9.6 kW / 40 Amp 11.5 kW / 48 Amp | 19.2 kW / 80 Amp |
| Output Voltage | 208/240V AC, Single Phase |
| Max Output Current | 32 Amp / 40 Amp / 48 Amp / 80 Amp |
| Connector Type | J1772 & NACS |
| Number of Ports | 1 |
| Cable Length | 25 ft (7.6 m) |
| User Interface | 4.3” Color LCD Display LED Status Indicator |
| Authentication | RFID, Mobile App, Plug & Charge |
| Connectivity | Wi-Fi, Ethernet, 4G |
| Communication | OCPP 2.0.1 |
| Operating Temperature | -22°F to 122°F (-30°C to 50°C) |
| Installation | Wall-Mount |
| Safety & Compliance | UL2594, UL2231, UL2251, CSA C22.2 |
| Warranty | 2 Years Limited |
KEY FEATURES
- Adjustable power output to meet your needs
- Smart charging with OCPP 2.0.1
- RFID, App and Plug & Charge
- Rugged and weather-resistant design
- Integrated cable management
- Energy efficient and cost effective
- Remote monitoring and management
IDEAL FOR
- Workplaces
- Retail & Shopping Centers
- Multi-Family Residential
- Hotels & Hospitality
- Fleets & Municipalities
- Educational Institutions
- Public Parking Areas
